Description

OWC

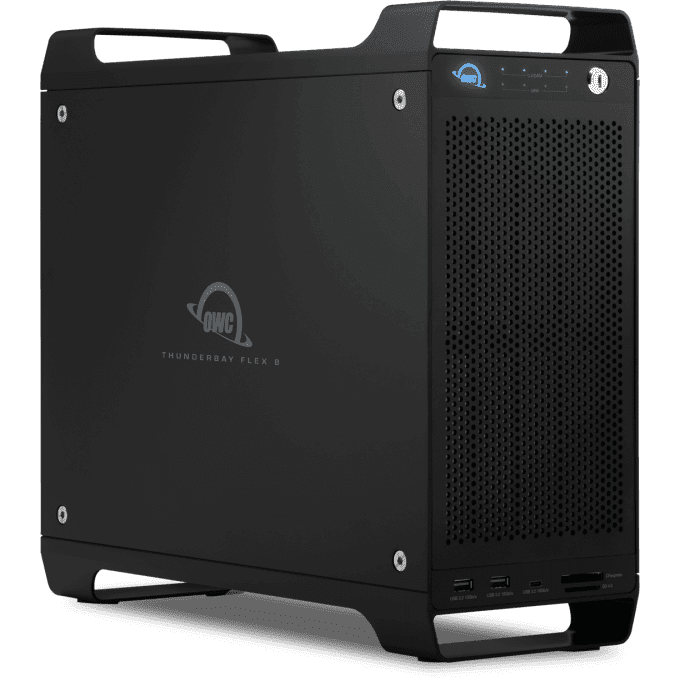

ThunderBay Flex 8
88TB Eight-Drive Thunderbolt Storage, Docking, and Expansion Solution

FLEXible 8-Bay Storage + 8-Port Connectivity + PCIe Expansion

The Industry's First Thunderbolt 3 All-In-Wonder

4 SSD + 4 HDD Maximum Flexibility Configuration

Get the best of both worlds: a blazing-fast, high-capacity SSD RAID 0 project drive for large format, multi-stream workflows along with the added long-term storage capacity of an HDD RAID 5. Plus, enjoy docking convenience and expand your capabilities by selecting a recommended PCIe card or add your own.

Flex Your Way Through Every Workflow

Whether you call it a workflow workhorse, a productivity platform, or a configurable command center, one description of the ThunderBay Flex 8 says it best. It is a groundbreaking workflow solution for digital imaging, VFX, video production, and video editing professionals from the world’s leading Thunderbolt accessory manufacturer.

ThunderBay Flex 8 offers eight drive bays that support a mix of SATA/SAS¹ and U.2/M.2² NVMe drives for virtually limitless storage capacity. Next, there’s a plethora of ports including two Thunderbolt 3³, one USB-C, and two USB-A for device docking and charging.

See your work in greater detail by adding up to an 8K display⁴ via a built-in DisplayPort 1.4 connection. Ingest hi-res images and video via front-side SD 4.0 and CFexpress card readers. And when you want to expand your desktop capabilities, there’s a PCIe slot waiting for your specific project needs.

ThunderBay Flex 8 is the one Thunderbolt 3 desktop device that rules them all. With an irresistible economy of scale, this consolidated solution is ideal for anyone waiting for the right moment to invest in Thunderbolt technology.

NVMe. PCIe. What’s It Mean to Me?

At the heart of the ThunderBay Flex 8 capabilities are two cutting-edge technology standards: NVMe and PCIe. Non-Volatile Memory Express (NVMe) optimizes the performance of modern flash technology over the Peripheral Component Interconnect Express (PCIe) standard. It enables significantly faster SSD performance with a more direct and optimized path to a computer’s processor.

Tying both of these technologies together is the Thunderbolt 3 interface which uses the PCIe bus. This interface offers the fastest data transfers possible on a single cable between computers and peripherals like storage solutions, docks, and expansion devices while also supplying 85W of power to keep your laptop ready to go at a moment’s notice.

Muscle-FLEXing Data Performance

Right out of the packaging, the top four bays are configured with four SSDs while the bottom four bays are configured with high-performance enterprise-class 3.5-inch HDDs. On solutions with four SATA 6Gb/s SSDs, you enjoy broad drive-swappable compatibility with other OWC ThunderBay units. On solutions with four U.2 NVMe SSDs, you are ready for the future storage standard used in content creation and video production. With real-world read/write speeds of 2750MB/s that saturates the Thunderbolt 3 speed threshold, you’re ready to handle 4K/8K and even Phantom high-speed files.

Done with the drives but need the docking connectivity?

Eject the ThunderBay Flex 8 drives and any external drives in a single click with the free OWC Dock Ejector app. It ensures all data has been written before any drive is unmounted to protect against data loss. It will even warn you from accidentally ejecting an in-use drive.

Docking FLEXibility

A virtual buffet of productivity-enhancing possibilities awaits you with the docking connections built into ThunderBay Flex 8. Power your notebook with up to 85W power delivery while capturing multi-stream hi-res footage at full frame rate. Connect audio and video mixers, digital camera, keyboards, and other peripherals and charge mobile devices via one USB-C and two USB-A 10Gb/s ports. Ingest and work with 4/8K RAW video and RAW photo files immediately at speeds up to 985MB/s with frontside SD 4.0 and CFexpress card readers. Add more viewing space with up to an 8K monitor via the DisplayPort 1.4 interface. And if all that’s not enough to satisfy your project needs, daisy-chain up to five additional Thunderbolt 3 devices!

FLEXpandable for Unique Needs

By removing the enclosure’s side panel, you can expand your capabilities by installing a half-length, full-height, single-width expansion card in the PCIe x16 connector/x4 lanes slot. Add a 4K video capture card for direct ingest of multi-stream high-res footage. Record high-quality tracks with an audio card and then edit and archive tracks.

Create a powerful file server with a high-speed networking card. By replacing the built-in SATA drive controller with a SATA or SAS RAID card, you can turn ThunderBay Flex 8 into a hardware RAID storage solution while keeping a PCIe slot open for other cards.

SoftRAID: RAID Made Easy

Harness the full capability of your OWC drive array with the included SoftRAID XT, the most powerful, intuitive RAID management software on the market for macOS and Windows. SoftRAID’s RAID creation and management technology has been finely tuned to perfection with over 20 years of development to provide rock solid protection of your data and optimize drive performance.

SoftRAID XT provides an unbeatable combination of speed, protection, and compatibility:

Advanced: Create RAID 0/1/4/5/1+0 (10) arrays
Protected: SoftRAID Monitor constantly watches your disks and alerts you if problems are detected
Validated: Volume validation ensures sectors can be read and parity is correct
Certified: Checks disks before use to ensure they are safe for data storage
Vigilant: Error prediction helps protect against unexpected failure
Universal: Move SoftRAID arrays seamlessly between Mac and PC2 with built-in OWC MacDrive technology

Beyond Hardware RAID

SoftRAID provides a level of storage performance that you simply can’t get with hardware RAID. SoftRAID gives you increased power and control over your RAID drives and disks that hardware RAID can’t deliver and doesn’t lock you into technology that you can’t upgrade or expand.

Dive deeper into the benefits of OWC SoftRAID »

A Protective, Economical Post-Production Solution

Sending a drive from set to post-production typically entails tedious and time-consuming drive enclosure disassembly to access the storage drive or costly shipping of the entire enclosure to the post lab. But ThunderBay Flex 8 offers yet another option.

By installing an OWC U.2 NVMe Interchange System carrier tray (sold separately) with a built-in U.2 connector into a ThunderBay Flex 8 drive tray, you can protect the U.2 SSD drive’s connector from repeated install/removal wear for improved drive longevity and investment. When done with your shoot, just ship the lightweight protective carrier and drive to the lab where the carrier can be installed into an OWC Helios 3S equipped with the OWC Interchange System. It’s a complete solution to safeguard your data while lowering shipping costs.

End-To-End Workflow Possibilities

FLEX On-Set

+ OWC Interchange System Carrier Tray with SSD

+ OWC ThunderBay Flex 8

Protects U.2 SSD drive connectors from install/ removal wear to improve drive longevity and extend your drive ROI.

Transit to Post

+ OWC Interchange System Carrier Tray with SSD

+ Small and economical. Ship only what you need.

Lightweight protective carrier safeguards data while lowering shipping costs vs shipping the entire enclosure.

Post-Production Lab

+ OWC Interchange System Carrier Tray with SSD

+ OWC Helios 3S (sold separately)

+ OWC Interchange System (sold separately)

Desktop U.2 NVMe SSD swappable storage for fast processing of footage.

OWC Thunderbolt cable Included

OWC ThunderBay Flex 8 comes with a certified 0.7 meter OWC Thunderbolt cable, with other lengths from 0.5 meter to 2.0 meters available separately.

SAS drives are supported with SAS drive controller card (available separately).
Up to four U.2 drives are supported. M.2 drives are also supported with M.2 to U.2 adapter (available separately).
Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
Full DisplayPort 1.4 capabilities depends on host computer support of DisplayPort 1.4 specification through its Thunderbolt 3 connection, host computer GPU capabilities, and connecting cable capabilities.
RAID 4/1+0 (10) are Mac only at this time.
SoftRAID XT works with macOS 10.12 or later and Windows 10 or later. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.

Highlights

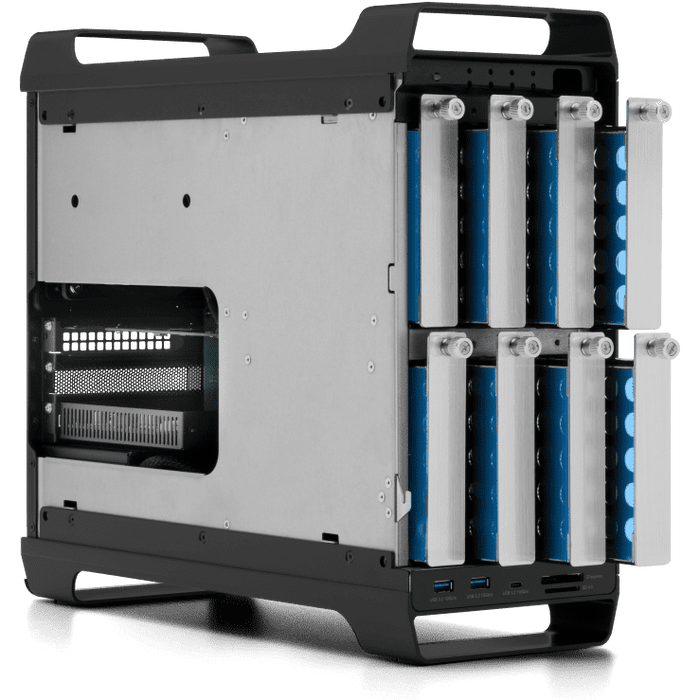

Eight drive bays: Pre-configured with four SSDs in the top bays and four enterprise class SATA hard drives in the bottom bays
Reconfigurable: Use a mix of SATA/SAS and U.2/M.2 NVMe drives for virtually limitless capacity and real-world speeds up to 2750MB/s
Future ready: top four bays can use U.2 SSDs…the emerging M&E industry storage standard
Powerfully easy RAID: create, manage, and monitor advanced RAID sets with SoftRAID
Do more: second Thunderbolt 3 port for daisy chaining devices or additional display(s)
See more: DisplayPort 1.4 for connecting up to an 8K display

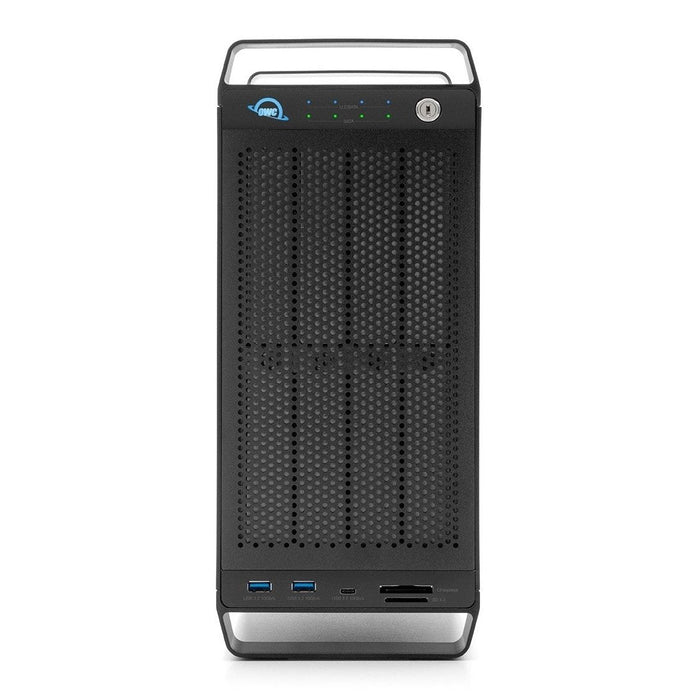

Fast media ingest: front-side SD 4.0 and CFexpress card readers with up to 985MB/s speed
Play your card: (1) PCIe slot for audio/video capture, networking, SSD storage, hardware RAID card, or I/O card
5 Year OWC Limited Warranty

Includes

(1) OWC ThunderBay Flex 8 External Storage Solution
(1) 0.7M Thunderbolt Cable
(1) External Power Cable
(2) Security Keys for Front Panel Lock
(1) Hex Key
(1) Quick Start Guide for OWC ThunderBay Flex 8
(1) Quick Start Guide for OWC ThunderBay Flex 8
(1) Assembly Manual & User Guide for OWC ThunderBay Flex 8
(1) OWC SoftRAID XT Software Bundle
(1) Quick Start Guide for OWC SoftRAID XT
(1) Manual & User Guide for OWC SoftRAID XT
(1) Acronis Cyber Protect Home Office (1 Year Subscription)
5 Year OWC Limited Warranty

Specifications

Product Specifications

Specifications

Mechanisms Supported
- 3.5 inch SATA drives
- 2.5 inch SATA drives
- 2.5 inch U.2 drives (top 4 bays only)
- NVMe M.2 drives (via U.2 adapter)
- 2.5 inch SAS drives (requires SAS card, not included)
- 3.5 inch SAS drives (requires SAS card, not included)
Total Capacity
- 88TB
Total Solution Cache Size
- 2048 MB
Standard Mechanism
- (4) 20.0TB Western Digital Ultrastar DC HC560 7,200RPM Enterprise Class Hard Disk Drive with 512 MB cache
- (4) 2.0TB OWC U2 ShuttleOne 2.5-inch NVMe U.2 Solid-State Drive
- *OWC reserves the right to replace or upgrade to equivalent or better components.
Display Support
- Up to one 8K display @ 60Hz,
- or one 4K display @ 120Hz,
- or one 5K display @ 60Hz,
- or one 4K display @ 60Hz and one 4K display @ 30Hz,
- or one 4K display @ 60Hz,
- or one 4K display @ 30Hz,
- or two 4K displays @ 60Hz
Display Support by Port
- DisplayPort 1.4: Up to 8K @ 60Hz or 4K @ 120Hz
- Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
Boot Support
- Dependent upon configuration. Independent Mac volumes should boot in most scenarios.
Hot Swap Support
- Yes
Hot Plug Support
- Yes
Chipset
- Thunderbolt: Intel JHL7440
- PCIe Switch: ASMedia ASM-2824
- USB Controller: Genesys Logic GL-3590
Data Rate
- Thunderbolt 3: 40Gb/s (or 5000MB/s)
Data Transfer Rate (Maximum)
- Thunderbolt 3 : Up to 40 Gb/s (or 5000 MB/s)

RAID

RAID Capable
- Yes
RAID Levels Supported
- RAID 0
- RAID 1
- RAID 0+1
- RAID 4
- RAID 5
- JBOD
RAID Features
- Software RAID

Reliability

MTBF (Mean Time Between Failures)
- Varies depending on drive mechanism installed
Contact Start Stops
- Varies depending on drive mechanism installed

Compatibility

Mac OS Compatibility
- macOS 10.15 Catalina
- macOS 11.x Big Sur
- macOS 12.x Monterey
- macOS 13.x Ventura
PC OS Compatibility
- Not compatible with Windows PCs
Driver Required
- SoftRAID Only
- The SoftRAID driver is installed within the SoftRAID application.
- For PCIe cards that require a driver, please check the manufacturer web site. Drivers for PCIe cards must be Thunderbolt-aware to function.
Host Port Requirements
- Thunderbolt (USB-C) port (backward compatible with Thunderbolt 2/Thunderbolt¹)
Supported PCIe Cards
- Supports one full-height, half-length, single-width card (driverless or with Thunderbolt-aware driver). GPUs not supported.
Other Requirements
- macOS 10.15.1 or later required.

Power

Power Supply
- Internal UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50-60Hz, 3.5A-7.0A
DC Output
- +12V, 37A
Wattage
- 450W
External Power Adapter
- No
Power Delivery
- (2) Thunderbolt 3 Ports (15W, 85W)

Physical

Number of Bays
- 8
Expansion Slots
- (1) PCIe 3.0 x16 physical, x4 electrical, full-height, half-length, single-width

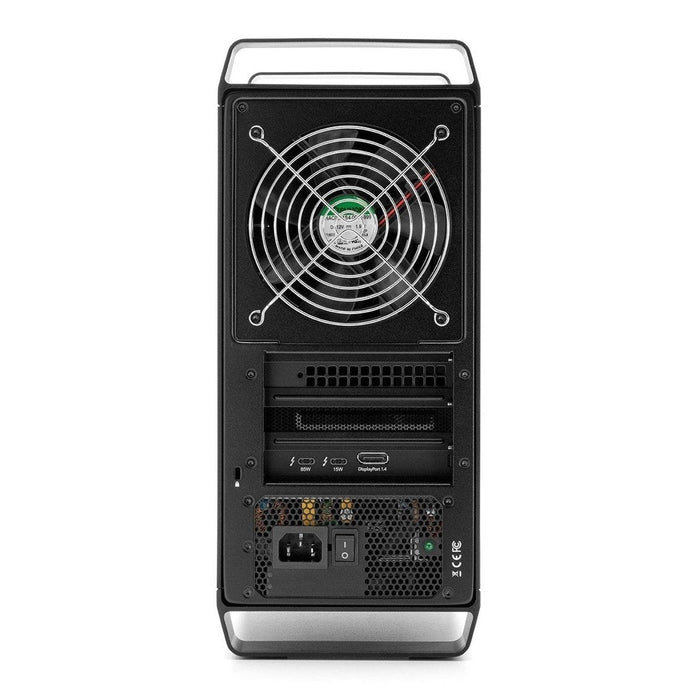

Device Ports
- (1) Host Port - Thunderbolt 3 (USB-C) up to 40 Gb/s (5000 MB/s)
- (1) Thunderbolt 3 (USB-C) Port
- (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
- (2) USB 3.2 Gen 2 Type-A Ports up to 10Gb/s (1250MB/s) - USB 2.0/3.0 backwards compatible
- (1) DisplayPort Port
Memory Card Slots
- (1) CFexpress Type B
- (1) Secure Digital (SD)
Cooling
- (1) 120mm 1,600RPM cooling fan
Security Slot
- Yes
Power Button
- Yes
Power/Activity LED
- Yes
Housing Color
- Black
Housing Material
- Aluminum
Dimensions
- Height: 34.9 cm (13.7 in)
- Length: 39.0 cm (15.4 in)
- Width: 14.9 cm (5.9 in)
Weight
- 9.2 kg (20.26 lbs)

Certifications

Certifications
- BSMI
- CE
- FCC
- RCM
- VCCI

Environmental

Ambient Temperature
- Operating: 50°F to 95°F (10°C to 35°C)
- Non-Operating: -40°F to 149°F (-40°C to 65°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
Shock
- Operating: Varies depending on drive mechanism installed
- Non-Operating: Varies depending on drive mechanism installed

Acoustics

Noise
- Varies depending on drive mechanism installed

Notes

Thunderbolt 2/Thunderbolt compatibility requires a certified Thunderbolt 3 (USB-C) to Thunderbolt 2 (mDP) adapter and a Thunderbolt 2 cable (available separately). This configuration provides data transfer at up to 20Gb/s but does not support notebook charging.
SoftRAID XT works with macOS 10.12 or later and Windows 10. M1 Macs require macOS 11.3 or later. SoftRAID is licensed per computer.
GPUs are not supported.
While we do not bundle or recommend specific RAID/SAS card setups at this time, we do provide an
Dual display support, including available resolution and refresh rates, is dependent on host hardware and drivers. Apple silicon M1 Pro, M1 Max, and M1 Ultra Mac models, Apple Intel-based Mac models, and Thunderbolt 4 PCs can support up to two displays at up to 4K @ 60Hz via Thunderbolt. Apple silicon M1 and M2 Mac models can support one external display up to 4K @ 60Hz via Thunderbolt.

Additional Information

Manufacturer Information

Manufacturer P/N

OWCTB3F84N088X2
